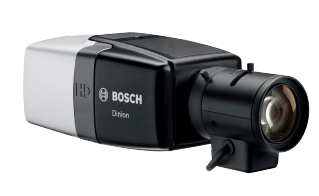

Bosch nbn-71022-ba HD network camera intelligent gun




High resolution 1080p, HD format
U intelligent noise reduction reduces bandwidth and storage requirements by up to 30%
U automatic rear focus adjustment, easy to install quickly
Content based scene analysis optimizes image processing
The dinion IP 7000 HD camera is a 1080p30 progressive scan CMOS camera, which uses digital imaging technology designed by Bosch. The camera provides the highest standards of performance and reliability in any security and monitoring scenario, day or night. It fully supports multicast, Internet data stream and iSCSI video recording.
System overview
Compared with the standard definition camera, the dinion IP 7000 HD provides electric autofocus, higher resolution, better sensitivity, higher frame rate, and improved picture quality at a lower cost, and saves more bandwidth. Video storage cost is greatly reduced.
Hybrid operation
Surge proof analog video output allows full hybrid operation. This means that both high-resolution IP video streaming and analog video output can be provided through the SMB connector. The hybrid function provides a simple migration path from traditional CCTV to modern IP based systems.
basic function
Excellent image quality
The camera is equipped with a 1 / 2.7-inch CMOS high-definition sensor to provide excellent image quality. Even in the worst lighting conditions, it can provide first-class image performance and color reproduction. This real day and night camera can automatically switch from color to black and white mode by sensing light intensity, or manually switch through alarm input or web browser.
Content based imaging technology
Content based imaging (C-bit) can be used to fundamentally improve image quality in all lighting conditions and identify areas that need to be enhanced. The camera uses intelligent video analysis to examine the scene and provide feedback to adjust the image processing. This can not only improve the details of key areas, but also improve the overall image performance. Idnr reduces the bandwidth and storage requirements, the camera uses intelligent dynamic noise reduction DNR), analyzes scene content actively, and reduces noise artifacts accordingly. Low noise images and efficient H.264 compression technology provide clear images. Compared with other H.264 cameras, this camera can reduce bandwidth and storage requirements by up to 30%. This enables the video stream to maintain high image quality and motion smoothness while reducing bandwidth consumption. The camera provides the most efficient image by skillfully optimizing the detail bandwidth ratio.
Region based coding is another feature that reduces bandwidth. You can set compression parameters for up to eight user-defined regions. This allows you to highly compress areas of interest, leaving more bandwidth for important parts of the scene.
The table shows the average typical optimized bandwidth of various image rates in KB / s:
Multiple data streams the innovative multiple data stream function can provide multiple H.264 data streams and one m ￣ JPEG data stream. These data streams can help achieve bandwidth saving viewing and recording, and facilitate integration with third-party video management systems.
You can choose vertical mode for the second data flow. In this mode, a 400 x 720 (9:16 aspect ratio) image is cropped from the full sensor image. When the scenario to be monitored is suitable for this mode, the bandwidth and storage requirements will be reduced.
ROI and e-ptz
Users can customize the region of interest (ROI). Remote e-ptz (electronic pan, pitch and zoom) control allows you to select specific areas of the original image. These areas generate separate data streams for remote viewing and recording. These data streams, along with the master data flow, allow the operator to observe the situation while separately monitoring the most interesting parts of the scene. With IVA, intelligent tracker can track objects in defined ROI.
The intelligent tracker can detect and track moving objects autonomously; the user can also click on an object, and the intelligent tracker will track the object.
It's easyto set up
The user interface of the camera is very intuitive and easy to configure.
Provides six configurable user modes and the best settings for a variety of applications:
Indoor – ordinary day night switching, ignoring the sun's light and street lighting
Outdoor – ordinary day night conversion, supporting the sun's bright light and street lighting
Mobile – monitors traffic or fast-moving objects; minimizes moving shadows
· low ligt – optimized to provide sufficient detail in low light conditions.
BLC (backlight compensation) - suitable for scenes where someone is moving in front of a bright background
· vibration – enhanced contrast, clarity and saturation storage management

You can control video management through Bosch video recording Manager (VRM), or you can use the iSCSI target directly without any recording software.
Front end video recording
The microSD card slot supports up to 2 TB of storage capacity. MicroSD card can be used for local alarm recording. Pre alarm recording in RAM can reduce the occupation of video bandwidth on the network, or extend the effective life of storage medium (if you use microSD card to record video).
Video analysis
With the built-in video content analysis function, the camera strengthens the concept of front-end intelligent technology, making the front-end equipment more intelligent. All models of cameras are equipped with motion + video mobility analysis system, which is very suitable for applications requiring standard video content analysis function.
