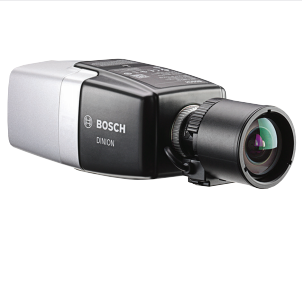

Bosch nbn-73023-ba star network gun

Excellent performance under low illumination conditions

Built in intelligent video analytics for triggering related alerts and quickly retrieving data

(IVA)

Intelligent dynamic noise reduction (idnr) reduces bandwidth and storage requirements by up to 50%

The extended dynamic range model can present both bright and dark regions

details

Automatic rear focus adjustment, easy to install quickly



This camera provides clear images 24 / 7 - even at night or in low light conditions

It can also provide clear images.

The extraordinary starlight sensitivity enables this camera to operate in extremely dim ambient light

Work under the circumstances. Extended dynamic mode can provide fine details in harsh lighting scenes

Section image.

The camera is available in 1080p or 720p resolution versions, and provides more than

Up to 60 images.

A variety of individually available high quality lenses are available.

basic function

Excellent low illumination performance

The latest sensor technology combined with advanced noise suppression features enables excellent

Color sensitivity. Excellent performance in low light conditions, even in ambient light

For dimming, the camera can also continue to provide excellent color performance.

Fast performance

The 60 images per second mode provides the best performance in fast action scenes

Not suitable for entertainment and banking applications.

Extended dynamic range mode

Extended dynamic range mode is based on a multiple exposure process, even in the same scene

It can also capture more details in both bright and dark areas. this

You can easily distinguish between objects and features, such as those with bright backlight

face.

The actual dynamic range of the camera is based on the use of light according to IEC 62676 Part 5

Electrical transfer function (OECF) analysis. Using this method, we can get one

Standard results for comparison with other cameras.




Content Based Imaging Technology

Content based imaging technology (CBIT) can be used to

To improve the image quality under all lighting conditions and identify areas that need to be enhanced

Domain. This camera uses intelligent video analytics to examine the scene,

Feedback is provided to readjust the image processing. This not only improves the focus

The details of the region can also improve the overall image performance. For example, with IVA,

Intelligent auto exposure technology allows you to see the brightness and shade in the scene

Moving objects in dark areas.

Enhanced intelligent video analysis

Built in video analysis is powerful and intelligent. Now, the front-end intelligent technology concept can

Provide more powerful functions:

· simple calibration

Reduce false positives

Expand the scope of identification

· crowd and queue management

· density and flow count

Task critical video analysis will reliably detect, track and analyze objects, and

Notifies you when a predefined alert is triggered. A series of intelligent alarm rules and objects

Filters and tracking patterns together make complex tasks simple.

The system is also very powerful and can reduce false positives even in severe weather conditions

(e.g. false alarms caused by plants or moving objects).

Metadata has been added to your video to add perception and structure. This makes you

It can quickly retrieve the correlation map from the stored video of several hours

Like. Metadata can also be used to provide irrefutable court evidence or based on population statistics

The business process is optimized by considering or crowd density information.

Calibration is fast and easy - just input the camera height. Internal gyroscope / acceleration

The meter sensor provides additional information to accurately calibrate the video analysis.




Ordering Information

DINION IP starlight 7000 HD

High performance IP gun camera, optimized for IVA, suitable for key tasks

Service applications, high-definition monitoring in low light conditions, supporting IP / simulation

Mixed operation.

720p

Order No. nbn-73013-ba

DINION IP starlight 7000 HD

High performance IP gun camera, optimized for IVA, suitable for key tasks

Service applications, high-definition monitoring in low light conditions, supporting IP / simulation

Mixed operation.

1080p

Order No. nbn-73023-ba

Hardware accessories

Ultra high definition zoom megapixel lens

Ultra high definition megapixel infrared correction zoom lens. 1 / 2.5 inch sensing

Device; CS base; 4-pin ultra high definition aperture; 5 MP; 9 to 40 mm

M; f1.5 to F8

Order No. lvf-5005c-s0940

Ultra high definition zoom megapixel lens

Ultra high definition zoom megapixel lens. 1 / 2-inch sensor; c-bottom

Seat; 4-pin ultra high definition aperture; 3 mp; 3.8 to 13 mm; f1.4 to 13 mm

F8

Order No. lvf-5003n-s3813

Ultra high definition zoom megapixel lens

Ultra high definition megapixel infrared correction zoom lens. 1 / 2.5 inch sensing

Device; CS base; 4-pin ultra high definition aperture; 5 MP; 1.8 to 3 mm

M; f1.8 to F8

Order No. lvf-5005c-s1803

Ultra high definition zoom megapixel lens

Ultra high definition megapixel infrared correction zoom lens. 1 / 1.8 "sensing

Device; CS base; 4-pin ultra high definition aperture; 5MP; 4.1 to 9 mm

M; f1.6 to F8

Order No. lvf-5005c-s4109

Zoom megapixel lens

Megapixel infrared correction zoom lens. Maximum 1 / 1.8 "sensor; C

Model base; 4-pin DC aperture; 5 MP; 12 to 50 mm; f1.6 to

T360

Order No. lvf-5005n-s1250

S1374 adapter

Convert C-base lens to CS base camera adapter

Order No. s1374

Upa-1220-60 power supply equipment

Power supply for the camera. 120 VAC、60 Hz In；12 VDC、1 A Out；

Adjusted

Order No. upa-1220-60
