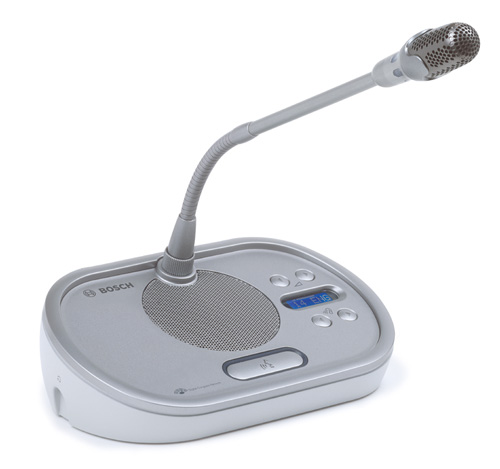

Features and benefits

Low sensitivity to mobile phone interference

Smart and fashionable ergonomic design

? pluggable microphone

- five voting buttons

? built in speaker

· reduce headphone output level to prevent acoustic feedback (activated when listening to basic language and when microphone is on)

It can be used as a representative device or a chairman device

Controls and lights

· five voting buttons with indicator ring around them

· installation activity / representative presence lights

The microphone button has a red, green or yellow luminous ring. Red indicates that the microphone is active, green indicates that the speech request has been accepted, and yellow indicates "VIP".

· VIP indicator lights up when delegates join notebook (only available when using PC software)

? headphone volume control button

· hidden "de init" switch

Interconnect components

· socket for pluggable microphones

Two 3.5mm headphone jacks (0.14in), stereo jack

· 2 m (78.7 in) cable with molded six pin circular connector at the end

* six pin circular connector for loop connection

Technical index

install

Desktop (portable or fixed installation) and embedded installation

Dimensions (H x W x T) (without microphone)

Desktop mount 61 x 190 x 116 mm (2.4 x 7.5 x 4.6 in)

Flush mount 6 x 190 x 120 mm (0.2 x 7.5 x 4.7 in)
