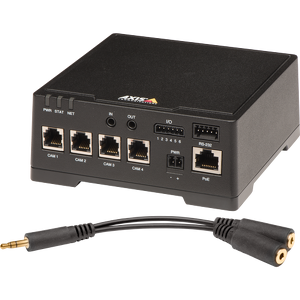

Asx AXIS F44 dual audio input host
The wide dynamic hunting technique (WDR) is used to realize the multi-screen monitoring with rich functions
Four sensor units are supported
At the same time, 1080p/HDTV 720p video from four sensor units is processed
Segment the image stream
Wide dynamic range - wide dynamic hunting technique
Amex Zipstream technology
Strong design and easy installation
Two-way audio, input/output port, dual SD card slot
Flexible installation
The AXIS F44 host supports up to four AXIS F sensor units capable of monitoring four adjacent areas. The host can be installed in the region of the masking, and sensor unit can be installed in the narrow indoor location or far up to 8 meters, 12 meters, or 15 m (26, 39, or 49 feet) of outdoor location, depending on the sensor unit and cable accessories is supported. The rugged and versatile AXIS F44 is designed for a variety of demanding applications, including shops, atms, emergency vehicles, buses and trams.
Covering four regions, it is economical and efficient
AXIS F44 provides a simple and cost-effective multi-screen monitoring solution that streams images from four different regions simultaneously over an Ethernet port. The total installation cost of AXIS F44, four sensor components, and other system components may be lower than that of a system that includes four comparable standard network cameras.
For example, network switches may be cheaper because they reduce the number of ports required. If the video management software (VMS) sees AXIS F44 as requiring a license rather than four, the VMS license fee can also be reduced. Overall installation and placement of these components may also be easier and more flexible than traditional camera solutions. In addition, the versatile AXIS F44 supports two full-size SD card slots for storing recorded content locally, thus bringing a high-performance stand-alone solution.
Two capture modes
AXIS F44 supports either 1080p or 720p viewfinder mode and multiple independently configured video streams for each channel. AXIS F44 can be a combination of any two modes running simultaneously across channels.
A viewfinder mode sets the maximum resolution and frame speed. In 1080p mode, the maximum resolution is 1080p (1920 x 1080 pixels) and the maximum frame speed is 12.5/15 frames per second (50/60 Hz). It provides a full picture Angle from the 1080p sensor unit.
In 720p viewfinder mode, the maximum resolution is 720p (1280 x 720 pixels) and the maximum frame speed is 25/30 frames per second (50/60 Hz). It provides a screenshot of the 1080p sensor unit and a full view of 720p sensor units such as AXIS F1004.
In both 1080p mode and 720p mode, AXIS F44 supports four-screen flow processing, which can integrate independent images of four sensor units into a single image for simultaneous viewing. Each scenario intercepts a quarter of the display area.
A four-segment screen provided by a bus. Watch video from the bus installation.
Wide dynamic range (WDR) - wide dynamic shadow hunting technology
In 720p viewfinder mode, AXIS F44 provides wide dynamic shadow hunting (WDR) on all four channels. Wide dynamic shadow hunting (WDR) can be activated when connected to the AXIS F sensor unit that supports this function. Wide dynamic shadow hunting (WDR) can clearly show the details in bright and dark scene areas. This technology is very suitable for the scene in which the object appears dark due to the bright background, such as the entrance or the front of ATM. Or a night solution, where cameras must simultaneously handle low-light environments and bright lights from cars, street lights, signs and stores. AXIS F44, together with the AXIS F sensor unit, can provide color video under the low light condition of 0.3 lux.
Zipstream - article - the spotlight
Zipstream
AXIS F44 supports amex Zipstream technology, enabling more efficient implementation of h. 264 video encoder. It is suitable for a variety of monitoring scenarios and can reduce bandwidth and storage requirements by more than 50% on average. In addition, it ensures that important details are retained when removing unnecessary data.
Strong design and easy installation
AXIS F44 to withstand harsh conditions, such as vibration and impact, and the temperature change, therefore very suitable for emergency vehicles (such as police cars, fire engines and ambulance), buses, trams, trucks (such as for car and other valuables in the truck).
Host can easily installed in a cabinet or small cabinets, because all the connector installed on the side of the host, made all the cables are the same direction, do not take up extra space. The bottom of the main component can be attached directly to the DIN track.
versatile
AXIS F44 supports two-way audio and two microphones when using the accompanying amex stereo to mono adapter. AXIS F44 also provides four configurable input/output ports for external devices for enhanced alarm management. With the RS232 port, external data can be integrated into video. Intelligent video features video mobile detection, active damage alarm, and applications that can be downloaded from the amex camera application platform. The host can be powered by Ethernet or dc power.
AXIS F sensor unit
AXIS F1004 Bullet Sensor Unit
AXIS F1004 Bullet Sensor Unit
AXIS F1004 Pinhole Sensor Unit
AXIS F1004 Pinhole Sensor Unit
The AXIS F1004 Sensor Unit
The AXIS F1004 Sensor Unit
The AXIS F1005 - E Sensor Unit
The AXIS F1005 - E Sensor Unit
The AXIS F1015 in hand
The AXIS F1015 Sensor Unit
The AXIS F1025 Sensor Unit
The AXIS F1025 Sensor Unit
The AXIS F1035 - E
The AXIS F1035 - E Sensor Unit
The AXIS F4005 Sensor Unit
AXIS F4005 Dome Sensor Unit
AXIS f4005-e Dome Sensor Unit
AXIS f4005-e Dome Sensor Unit
AXIS F8804 Stereo Sensor Unit
