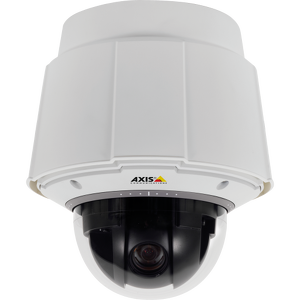

Asx AXIS q6045-c PTZ hemispheric network camera

High speed HDTV 1080p PTZ hemisphere camera with active cooling function


Stop selling products. Support date to 2020-01-01

After this date, see the support documentation.

You can get support as long as the product is under warranty.

Replacement: AXIS q6045-c Mk II

Working temperature up to 75 ° C (167 ° F)

Outdoor special, meet military standards

HDTV 1080p and 20 times optical zoom

SFP fiber slot, RJ45 interface

I/O for alarm input/output

The AXIS Q6045 - C

Key tasks and extensive monitoring

AXIS Q6045 - C PTZ camera hemisphere, such as in the desert environment also can maintain the best video quality and the most excellent performance, due to high temperature, solar radiation is big, need a camera to extremely high temperature work under harsh conditions. Thanks to the clarity of HDTV 1080p and 20 times optical zoom through automatic focusing, the outdoor dedicated PTZ hemisphere camera has achieved excellent coverage and detailed magnification. The product is ideal for construction and open mining sites, as well as along pipelines, as well as for urban monitoring.



Can work reliably in extremely hot environment

AXIS Q6045 - C has a built-in active cooling system, working temperature up to 75 ° C (167 ° F). The dust-proof and waterproof camera is rated IP66 and NEMA 4X, meets the strict military standard of mil-std-810g and ensures reliable operation in severe weather conditions such as dust storms. The impact detection function is supported to enable the camera to trigger the alarm when it is hit.


HDTV to achieve high - definition details display

The AXIS Q6045 - level of 62.98 ° C with wide visual Angle, twice the resolution is 720 p HDTV. Its 20-fold optical zoom, combined with the high resolution of HDTV 1080p, ensures an extremely detailed zoom that can read license plates about 275 metres (900 feet) away. AXIS q6045-c provides the same excellent video quality as AXIS q6045-e.


The solid AXIS q6045-c has horizontal/vertical rotation/zoom capability and works throughout the day. It also can be 450 ° per second, quick and accurate level rotate/vertical response. The camera can be automatically positioned to 256 preset positions with a roving function. AXIS q6045-c is able to rotate vertically relative to the water level at an Angle of 20 up to and up, so that it can see higher than the installation position.


Flexible installation and easy integration


AXIS T8605 media conversion switch

Thanks to the accompanying media conversion switch, AXIS q6045-c is able to connect to the network as a Daisy chain using standard network cables or fiber optic cables that help reduce the cost of remote camera installation. The media transfer switch also enables the camera to connect to an external alarm device via two configurable input/output ports and to a 12v power source.


Intelligent video

AXIS q6045-c comes with built-in analysis capabilities, such as high-light compensation, target removal, fence detection, target statistics, and access detection. It also supports automatic tracking and active network protection. With the active guard function, the camera can automatically move to the preset position when the motion is detected in the predetermined area, and then track the detected target. The camera also provides sufficient capacity for intelligent video applications based on the amex camera application platform.
