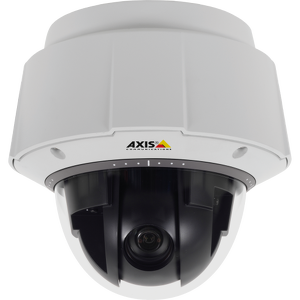

Asx AXIS q6045-e Mk II PTZ hemispheric network camera
High speed PTZ camera for outdoor use with HDTV 1080p resolution and 32 times zoom function
Stop selling products. Support date to 2021-08-31
After this date, see the support documentation.
You can get support as long as the product is under warranty.
Replacement: AXIS q6055-e
HDTV 1080p and 32 optical zoom
Outdoor special and polar temperature control
Anti-damage and impact detection
Intelligent video including high light compensation
High Ethernet power supply
The AXIS Q6045 - E
Wide coverage area
AXIS Q6045 - E Mk II is an advanced special outdoor PTZ camera hemisphere, provide 1080 p HDTV, 32 x optical zoom function and high speed precision horizontal rotation/vertical rotation function, realized the wide range of detection and details of the display. The equipment is ideal for cities, airports, railway stations, seaports and stadiums.
Reliable operation
The camera is easy to install and reliable, with anti-damage (IK10), vibration detection, surge protection (railway standard) and anti-dust, rain and snow function (IP66 and NEMA 4X). The operating temperature range is -50 and C is up to 50 (-58 and F is up to 122). The camera's polar temperature control ensures a safe start in extremely cold conditions.
The solid AXIS q6045-e Mk II is designed for all-weather horizontal/vertical rotation/zoom operations. The camera can be automatically positioned to 256 preset positions with a roving function. AXIS q6045-e Mk II is able to rotate vertically relative to the water level at an Angle of 20 upstream, so that it can see a higher position than its installation position. This function can be used (for example) for stadiums that need to monitor the grandstand up.
HDTV is the ultimate in detail
AXIS Q6045 - offered 62.8 ° E Mk II level wide perspective. The camera's 32-fold optical zoom, combined with HDTV's 1080p resolution, ensures excellent zoom performance, for example, allowing you to see the license plate of the vehicle from about 300 m (984 ft.) away.
Intelligent video
AXIS q6045-e Mk II is equipped with built-in basic analysis functions, such as high-light compensation, to mask bright light emitted by, for example, a headlamp for easy viewing. It also supports target removal, fence detection, target statistics, in and out detection, automatic tracking and active guarding. With the active guard function, the camera can automatically move to the preset position when the motion is detected in the predetermined area, and then track the detected target. The camera also provides sufficient capacity for third party intelligent video applications based on the asensor camera application platform.
AXIS q6045-e Mk II has built-in memory card slot to support local storage of recorded content. The camera is powered by the high power PoE provided across the high power PoE.
Port of Sao Francisco do Sul
From the outside, the Port of Sao Francisco do Sul is protected with cameras fixed around the entire perimeter. Inside, some PTZs support operational control
