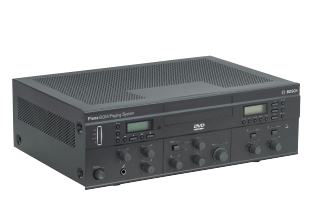

Integration of background music and paging solution u can play video and audio DVD/CD player u support MP3, JPEG, and multiple formats of video output u has 10 preset channel and the digital control of FM/AM tuner u double mixing amplifier, 120 W with spot BGM/paging system were the volume knob is a multifunctional integration solution, full foot all the background music (BGM) requirements, and can be broadcast and paging related people. This excellent but economical device is very easy to install and operate. It is commonly used in stores, supermarkets, restaurants, bars, schools, cafeterias, health clubs, garages and other places where background music sources are needed to create a good atmosphere and carry out amplification broadcasts. Basic function DVD/CD player DVD/CD player DVD/CD player can use a single MP3 DVD to play continuously for a week with high quality music. It allows music files to be placed in multiple folders on a single CD. The player can automatically search and play all playable formats on the disk and has playback mode. In addition, you can also browse through the multilingual screen. This device can play standard audio and video DVD/CD as well as MPEG2 and MP3 CDS with long playing time. It also plays mp3s on CDR, dvd-rom, and dvd-r disks and displays JPEG files on the disks. It supports all MP3 files with bitrates between 32 KBPS and 320 KBPS, mono/stereo/combined stereo, and continuous bit rate (CBR) and variable bit rate (VBR) formats. It also provides component, composition and s-video interface for Video output. The device can play PAL and NTSC system contents by line scan and line scan. There is also a TOSlink optical output port on the disk part of this device, which supports S/P DIF, DST and Dolby Digital formats. Therefore, no matter what the sound source is, the device can output S/P DIF and select left/right channel or surround channel as the low-frequency effect output on this output. The basic control components are all on the device itself, and browsing and configuration operations can be done through remote control and on-screen menus. This device supports most major languages and can set regional preferences, such as subtitle language preferences. The FM/AM tuner CNC FM/AM tuner USES a frequency synthesizer to accurately capture broadcast stations, and each band has 10 preset channels for storing happy radio programs. Auxiliary (music) input and tape output ports can connect to external devices. Microphone input the broadcast part of the device has three balanced microphone inputs. Microphone input 1 DIN socket interface is located on the back of the equipment, can choose priority, used to connect to the main tube (LBB 1950/00, for example), with two tones of voice (in the main broad issued before seeding), speech filter and phantom power supply. In addition, it also has a microphone jack in the front, which can select the VOX activation function for the LBC 2900/15 moving coil microphone and presets music strong cutting level and prompt tone volume. Microphone inputs 2 and 3 are XLR interfaces (with optional phantom power) and mix with BGM. All microphone inputs and music sources have their own volume knobs, which share the same low and high pitch knobs and volume control knobs. The powerful 120w output provides a 100v stabilized output from two separate transformers used to drive 100 V speakers in two separate areas. The 100 V technology reduces signal loss over long distances and allows simple parallel connections between multiple speakers. Both areas can be selected separately on the front panel, and the output level of each area can be set separately. Each zone also has a low voltage output for connecting an 8-ohm speaker (PSP) without a transformer. In addition, there is a separate 100v "call-only" output for areas that do not require background music but need broadcasting. Voltage-free "call activation" contacts can be used to override the local volume knob during an emergency call or for other purposes. The LED indicator is used to monitor the output. Control components and in front of the light, power switch, CD eject key, CD back key, CD play button, CD forward key, disc stop button, the CD shows, CD duplicate keys, CD pause, tuner memory key 1-5, and 6-10, the tuner Shift key to select the memory from 1 to 5 or 6-10, the tuner show key, tuner, tuner FM/AM select key scanning, increase/decrease the key, the tuner tuner frequency display, on the back DIP switch • back side of phantom power switch interconnect component • FM antenna input • AM antenna input • tape output (single channel, 2), auxiliary input (stereo into mono), "call" only output, output regional output 1, 2, "call to activate" output, component video output (3), composite video output, digital optical fiber output, grounding screw terminals, power supply connection certificates with immunity recognition security in accordance with EN 60065 standard EN 55103-2 standard radiation in accordance with EN 55103-1 certification European CE standard area number attachment component 1 PLN - 2 aio120 spot li BMG/paging device the power cord 1 remote control installation and user manual 1 spot her CD specification electric mains supply voltage 230/115 VAC, plus or minus 10%, 50/60 Hz into current 8 A @ 230 VAC / 16 A @ 115 VAC maximum power 400 VA/rated output power 180 W / 120 W / 60 Hz to 18 kHz frequency response performance (+ 1 / ‑ 3 dB, Distortion <1% (rated output), 1 kHz low tone control -8/+8 db@100 Hz high pitch control -8/+8 db@10 kHz microphone input 1 x connector 5 pin DIN, balance, 6.3 mm jack 1 mV impedance sensitivity > 1000 signal-to-noise ratio (flat when the largest volume) 63 dB SNR (minimum volume/static sound flat) 75 dB margin 25 dB voice filter - 3 dB (315 Hz), qualcomm, 6 dB/oct phantom power supply 12 V (5 needles DIN) VOX (6.3 mm) on jack triggering time 200 milliseconds. Release time to 2 seconds, according to the level of adjustable microphone input 2 x 3 needle XLR connectors, balance of 1 mV impedance sensitivity > 1000 signal-to-noise ratio (flat when the largest volume) 63 dB SNR (minimum volume/static sound flat) 75 dB margin 25 dB illusion auxiliary power supply 12 V input connector lotus plug, Into mono 2 | PLN ‑ 2 aio120 BGM sensitivity 200 mV/paging system impedance euro 22000 signal-to-noise ratio (flat when the largest volume) 70 dB SNR (minimum volume/static sound flat) 75 dB margin 25 dB tuner tuning range F M 87.5 to 108 MHz (Europe, 50 kHz; Asia/the United States, 100 kHz) A M 531 to 1602 kHz (Europe, 9 kHz) 530 to 1610 kHz (Asia/the United States, 10 kHz) FM sensitivity 2 V (26 dB S/N) AM sensitivity 30 V (20 dB S/N) frequency response 30 Hz to 15 kHz (+1/-3 dB, FM) distortion < 1% SNR >63 dB (1 mV, FM) tuner output 1 x connector lotus plug, (RCA) stereo rated level 200 mV DVD player 20 Hz to 20 kHz frequency response (1 + / - 3 dB) distortion < 0.1% SNR > 96 dB 32 KBPS to 320 KBPS MP3 bitrate CBR and VBR, single channel and stereo data buffer (shock) 16 MB DVD/CD player output 1 x optical output TOSlink (PCM, Multichannel) support the format of the DVD, CD, (rewrite) can write MP3, MP4, and JPEG video component video output connector insert 3 lotus composite video 1 insert lotus S - video connector 1 small DIN regular data buffer 8 MB (shock) over 10000 times the service life of the CD plays the biggest title number 999 (MP3), 99 (CDS) tape output connector lotus plug, 2x single channel rated level 350 mV impedance 1 KWH loudspeaker output 6 x 2 connector screws, Floating 100 V rated output 120 W all areas (total) regional output attenuation attenuation respectively 0/100/70/50/35/25/18 V ‑ 3/6/9/12 / ‑ ‑ ‑ ‑ 15 dB (120/60/15/8/4 W / 30) 8 ohm output 18 V (40 W per area power rating) call to activate 1 x relay connector screw no voltage, maximum 100 V, A mechanical size (high x width x thickness) 144 x 430 x 320 mm (width 19 inches) Height is 3 u) weighs about 11.6 kg to install independent rack installation (not recommended) color carbon black working temperature environment specification - 10 DHS C to + 45 DHS C (14 DHS F + to + 113 DHS F) storage temperature and 40 DHS C to + 70 DHS C (- 40 DHS F to + 158 DHS F) < 95% relative humidity fan noise level < 35 dB SPL, 1 m, The temperature control ordering information PLN‑2AIO120 BGM/paging system is a multi-function integrated solution that can meet the requirements of background music (BGM), broadcasting and personnel paging. Order number aio120 PLN - 2
