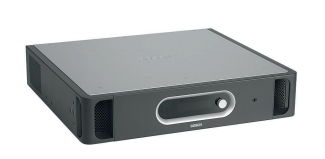

The transporter is the core component of the Integrus system. It receives analog or digital input signals, modulates those signals to the carrier, and then transmits the carrier to the radiator in the field. Basic function, rest time with auxiliary models at a public meeting to all the music channel transmission, the secondary pattern is used to spread from another emitter signals to in more than one meeting room, use test patterns for each different input/channel frequency sonorant, tones, and with the increase of channel gradually increase the sensitivity of each input can be adjusted flexibly, To section to fine tune the audio level, built-in small infrared radiant panel is used for audio monitoring, through the display screen instructions radiant panel and the system state, installation personnel can assign a unique name for each transmitter in order to more transmitter system Easily in the system identification, installation personnel can also assign a unique name for each audio channel. Can choose these names from the list of options or manual input, automatically send all channel emergency information, automatic standby/boot function, the automatic synchronization with DCN system used in the channel number, and a new generation of DCN system automatically the name of the language used in synchronous, universal power equipment suitable for use in the world, fashion 19 inches (2 u) shell applies to desktop or rack installation, controls and the handle of the portable light, 2 x 16 characters LCD display, Used to display status information and transmitter with, used to browse the menu and configuration of spinning/button, on the front panel power switch interconnection interconnect (located in the back of the transmitter), convex type European socket to power connection, audio data bus connector slot (H 15, concave type), used to connect to LBB 3422/20 symmetric audio input and interpreter module, 4, 8, 16 or 32 lotus plug connector, used for non-equilibrium audio signal input, 2 XLR jack, For entering the original speech, balance of emergency information or music signal, a junction box, used to send emergency information to all channel, 3.5 mm (0.14 inch) stereo headphone socket, listens for input and 1 channel, BNC connector, used for HF signal receiving from other transmissions, 6 BNC connector, used for HF signal output up to 30 radiant panel, two optical fiber network cable connector, * * is used to access a new generation of DCN system requires the use of LBB xx fiber network cable accessories quantity component 1, 4416 / INT - TX Integrus transmitter attached to install 1 module of 19 inch rack mounting bracket, detachable foot and annex 1 system installation and operation manual CD 1 100-240 Vac power cord specification electrical supply voltage, 50 to 60 Hz power operation (maximum) 55 W standby 29 W rated + 3 dBV unbalanced audio input, + 6 largest dBV (plus or minus 6 dB) rated + 15 dBV, maximum + 18 dBV (plus or minus 6 dB) balanced audio input + 6 to 18 dBV + nominal emergency switch connector emergency control input headphone output 32 ohms to 2000 European HF nominal 1 Vpp, minimum 10 mVpp, 75 ohms HF output 1 Vpp, 6 VDC, 75 ohms mechanical size (high) x width x thick desktop installation, that contains a 92 x 440 x 440 mm (3.6 x 17.3 x 16.1 inches) 19 inch rack installation, including stent, 88 x 483 x 410 mm (3.5 x 19 x 16.1 inches) stents 40 mm (1.6 inch) in front of the 370 mm (14.6 inch) weight behind without bracket, That contains a 6.8 kg (15.0 pounds) for 19 inch rack installation or fixed to the desktop support can be used independently on the surface of the table easily remove the leg color of carbon black (PH 10736) and silver order information INT ‑ TX04 4 channels transmitter Integrus 4 transmitter. Order no. Int-tx04 INT‑TX08 channel transmitter Integrus 8 channel transmitter. Order no. Int-tx08 INT‑TX16 channel transmitter Integrus 16 channel transmitter. Order no. Int-tx16 INT‑TX32 channel transmitter Integrus 32 channel transmitter. Order no. Int-tx32 INT‑TX04 - US 4 channel infrared transmitter (US) Integrus 4 channel transmitter. The American version. Order no. INT t‑ x04-us INT - TX08 -US 8 channel infrared transmitter (US) Integrus 8 channel transmitter. The American version. Order no. INT t‑ x08-us INT - tx16-us 16 channel infrared transmitter (US) Integrus 16 channel transmitter. The American version. Order no. INT t‑ x16-us INT - TX32 -US 32 channel infrared transmitter (US) Integrus 32 channel transmitter. The American version. LBB 3422/20 balanced audio input and translator module balanced audio input and translator module are used to connect the Integrus transmitter to the CCS 900 discussion system and the LBB 3222/04 channel interpreter platform. Order number LBB3422/20
