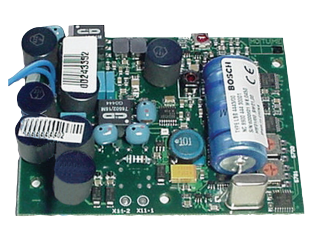

This monitor board is used to monitor the integrity of the speaker circuit. It can monitor the state of the speaker circuit and all its branches together with the LBB 4440/00 monitor control panel. The state of the speaker line is transmitted to LBB 4440/00 through the existing speaker cable. Basic function this monitor board is installed in the housing of the last speaker in the speaker circuit or packaged in a separate housing. It can monitor branch lines. If a speaker circuit has multiple branches, a separate LBB 4443/00 is installed for the last loudspeaker in each branch. This monitor board can detect and report circuit faults within 100 seconds. Interconnection, 2 30 cm soft thread, two faston interface and recognized safety certificate conform to the standard IEC 60065 / EN 60065 immunity in accordance with EN 55103 ‑ 2 / EN 50130 / EN 50121 ‑ ‑ 4 standard cooling conform to EN 55103-1/4 FCC - 47 standard part b 15 emergency in accordance with EN 60849 / EN/ISO 7240 ‑ ‑ 16 16 standard 54 nautical comply with IEC 60945 Standard regional certified European CPR EU_CPR CE COC CE CertAlarm CE DOP GL Poland CNBOP install/configure the following speakers to install the monitor board: LC1 -- WM06E LBC 3210/00 LBC 3432/02 LC1 -- UM06E LA1 -- UM20E LA1 -- LS1 -- OC100E -- 1 -- LC1 -- UM12E LA1 -- UM40E -- LBC -- UM24E -- horn speaker LBC 3510/40 LBC 3406/16 LBC 3011/41 LH1‑10M10E LBC 3011/51 LBC 3482/00 LB1‑UM06E‑1 LBC 3483/00 LBC 3484/01 LBC 3484/00 LB1 - UM20E‑D/L - LH1 - UC30E LB1 - UM50E‑ iii PCBX 22 mm (3.0 x 2.3 x 0.8 inches) weight of 70 grams (2.4 ounces) to install the speaker to provide optional mounting bracket LBB 4446/00 environment required working temperature - 5 DHS C + 55 DHS C (23 DHS F + to + 131 DHS F) storage temperature - 20 DHS C to + 70 DHS C (4 DHS F to + 158 DHS F) 15% to 90% humidity air pressure between 600 and 1100 hPa LBB order information The secondary circuit monitoring PCB of the line end (EOL) monitoring board is used to connect to the end of the speaker line or cable relay point, cooperate with lbb4440/00, and monitor the integrity of the line. Order no. 4443/00 ‑ LBB4443/00 hardware accessories LBB CN line (EOL) monitoring board secondary at the end of the line monitoring and PCB used to connect a speaker line or cable relay points, at the end of working together with LBB4440/00, the integrity of the monitoring circuit, the Chinese version. The main circuit and speaker monitoring PCB of the purchased lbb44433/00-cn LBB 4440/00 monitoring control panel is suitable for installation in the power amplifier of Praesideo link network. One board is required for each channel. The main circuit and speaker monitoring PCB of the purchased lbb4440/00 LBB4440/00 ‑CN monitoring control panel is suitable for installation in the power amplifier of Praesideo link network. The purchased lbb4440/00-cn LBB 4446/00 monitoring board support kit (10 sets per set) is used to install the auxiliary monitoring board in the speaker or cable TV set-top box (10 sets per set). Order # 00 LBB4446 / PRS ‑ 16 MCI multichannel interface to the Praesideo network interface, provide the basic amplifier non-networked 16 channel audio output and provides control and monitoring, through the power amplifier Praesideo network or connection, rack unit 2 RU. Order number PRS - 16 MCI
