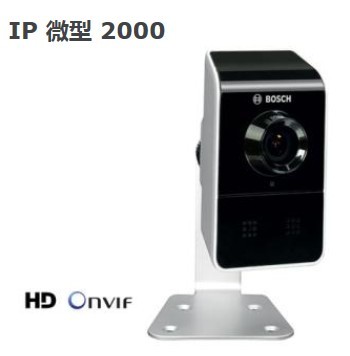

Bosch NPC-20012-F2 Micro Fixed IP HD Cameras 2000 HD720p Micro-Cassette, 2.5 mm lens
Product Numbers:NPC-20012-F2
Price:0
Product introduction:Bosch NPC-20012-F2 Micro Fixed IP HD Cameras 2000 HD720p Micro-Cassette, 2.5 mm lens
Bosch NPC-20012-F2 Micro Fixed IP HD Cameras 2000 HD720p Micro-Cassette, 2.5 mm lens
Small, fashion micro-cassette indoor IP camera
When images per second for 30 image can reach 720 p or VGA resolution
Used for the front-end video MicroSD card slot
Mobile and audio detection
FTP, Dropbox and E-mail applications
Input voltage of + 5 VDC (by providing the power adapter)
PoE (720 p) only Ethernet power supply rated 48 VDC) (IEEE 802.3 af (802.3 at type 1) level of power: 2 classes
Power consumption (720 p) maximum 2.65 watts (+ 5 VDC) 4.66 watts (PoE)
Power consumption (VGA) maximum 1.95 watts
Power supply has the attached 100-240 VAC to + 5 VDC power supply device
1/4 inch CMOS sensor type
Effective 1280 x 720 pixels (720 x 720 p type) 480 (VGA)
The sensitivity of 0.1 lx
69 dB dynamic range
Electronic day/night automatically, color, black and white
The shutter speed automatic electronic shutter (AES) fixed [1/25] (1/30 to 1/30)
Video resolution 720 p, 480 p, 432 p, 240 p, 288 p, 144 p (NPC - 20012), 480 p, 240 p - 20002 (NPC)
H. 264 video compression MP (Main Profile);M - JPEG
Frame rate of 30 biggest ips (M - JPEG frame rate may vary from system to system load)
Video set video watermarking, alarm mode tags, mirror image, image rollovers, contrast, saturation, brightness, white balance, backlight compensation, privacy shelter, motion detecting, tamper alarm, pixel counter
2.5 mm lens type stationary, f
Lens plate installation
Vertical view level (x) 89 ° x 50 ° 20012 ° 56 x - 20012 (NPC) ° (NPC - 20002)
Built-in microphone audio input
Audio output built-in speakers
AAC audio compression, g. 711, L16 (live and recording)
Internal RAM 10 seconds before the alarm video
MicroSDHC memory card slot up support 32 GB / 2 TB microSDXC card (it is recommended to use six classes or more categories of SD card for high-definition video)
Continuous recording video, video loop.Video alarm/event/schedule
Device configuration using a Web browser or PC monitoring software
Protocol IPv4 and IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2 / V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, and DHCP, SNTP, SNMP (V1, MIB ‑ II), 802.1 x, DNS, DNSv6, DDNS, SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, Digest Authentication.
Encryption, SSL, TLS 1.0 DES, 3 DES, AES (optional)
10/100 base-t Ethernet, automatic detection, half duplex/full duplex
Ethernet RJ45 connector
Connect the ONVIF Profile S, Auto - MDIX
Mounting bracket 3 axis adjustment
Size (length x width x height) 109 x 65 x 47 mm (4.29 x 2.56 x 1.85 inches)
Weight (720 p type), about 143 grams (5.04 ounces)
Weight (VGA) about 89 grams (3.14 ounces)
RAL color 9017
Working temperature (720 p) - 10 DHS C to + 50 DHS C (14 DHS F to + 122 DHS F)
Working temperature (VGA) - 10 DHS C to + 45 DHS C (14 DHS F to + 113 DHS F)
Storage temperature - 20 DHS C to + 70 DHS C (4 DHS F to + 158 DHS F)
Humidity 0% to 0% relative humidity (no condensation)
