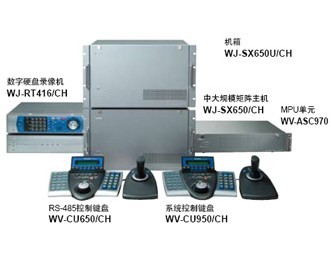

The product description
Matrix series SX650 system management software
Video SX650 matrix tablet
SX650 matrix network card
Medium system (1)
WJ - HD316A network control system
Large systems (2)
In large-scale matrix SX650EX products
Product features
Matrix host
Video output board SX650 matrix
Based system
Medium system (2)
Large systems (1)
Video input/output board combination
The product description
Support three kinds of method of configuration: standard (256 x 32 biggest configuration), extend the configuration (512 x 64 largest configuration) and satellite system configuration (can accommodate a maximum of 64 extension configuration area system).
Product features
Main functions and characteristics of the standard system
Up to 256 road input, 32 channel output.
Input all support multiple video coaxial, control data and coaxial VD2 sync. (vertical coaxial multiplex drive).
Can connect up to 256 RS - 485 remote control camera.
Can be used at the same time 16 WV - CU650 controller PC machine.
Support up to 1024 alarm input, including 256 terminal input, 256 cameras alarm, 256 video loss alarm, video alarm 256 and 256 serial alarm input. At the same time also supports 64 terminal alarm output.
Can store up to 10000 alarm record, all alarm history records can be downloaded to a PC.
Three kinds of switching sequence: circuit switching; Preset group; Group switch.
Maximum 128 timer events/camera.
Support 256 preset position instruction (depending on the camera model).
Up to 60 registered users *, each user's operation level and priority setting can be different, a flexible system partition.
* one of the users must be registered as a video control
Maximum of 32 WJ - RT416 video connection. Use the WJ - RT416 network function which can realize remote monitoring of PC.
* RT416 upgrade function for the future
System controller can realize the video cameras, matrix and control of VCR.
Can use the browser or via video to use WV - AS65 PC management software to control the camera.
OSD menu and management console can simplify set operation.
Set menu with 7 kinds of language patterns: English, French, Spanish, German, Italian, Russian and Japanese.
Main functions and characteristics of the extended system
Up to 512 road input, output 64 road, equipped with WV - ASC970 and WJ - PB65E01 network board.
Input all support multiple video coaxial, control data and coaxial VD2 sync (vertical coaxial multiplex drive).
Can connect up to 512 RS - 485 remote control camera.
Can be used at the same time 64 WV - 64 CU950 controller and PC.
Support up to 1024 alarm input, alarm signal source includes 1024 terminal input, 512 cameras alarm, 512 video loss alarm, and 1024 serial alarm input. Support up to 256 terminals alarm output.
Each alarm event can start 10 kinds of linkage.
Three kinds of switching sequence: circuit switching; Preset group; Group switch.
Support up to 1024 timer events.
Up to 512 registered users, each user's operation level and priority setting can be different, a flexible system partition.
Maximum of 32 WJ - RT416 video connection. Use the WJ - RT416 network function which can realize remote monitoring of PC.
* RT416 upgrade function for the future
Maximum of 32 WJ - RT416 video connection. Use the WJ - RT416 network function which can realize remote monitoring of PC.
* RT416 upgrade function for the future
System controller can realize to the camera, matrix and perfect control of video recorder.
Support spare CPU system.
Main functions and characteristics of the networked system
The extended matrix system equipped with WJ - 650 WV - ASC970 ASC960 software upgrades. As many as 64 extension 650 system via video link, and network to form a huge network system.
There are as many as 1024 video link between regional system.
Support 1024 global warning.
Can be registered as many as 512 global operator (user).
System integration system 850 with 650 can also be connected to the system.
