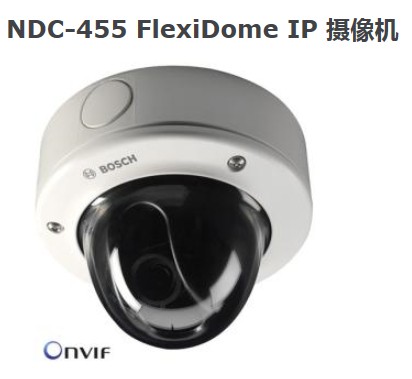

Bosch NDC-455V03-21P SD Fixed IP Hemisphere Camera FlexiDome Color Riot,1/3"Progressive Scan H.264，2.8 to 10 Mm Zoom Lens NTSC，60Hz，PoE， Embedded MicroSD Slot
Product Numbers:NDC-455V03-21P
Price:0
Product introduction:Bosch NDC-455V03-21P SD Fixed IP Hemisphere Camera FlexiDome Color Riot,1/3"Progressive Scan H.264，2.8 to 10 Mm Zoom Lens NTSC，60Hz，PoE， Embedded MicroSD Slot
Bosch NDC-455V03-21P SD Fixed IP Hemisphere Camera FlexiDome Color Riot,1/3"Progressive Scan H.264，2.8 to 10 Mm Zoom Lens NTSC，60Hz，PoE， Embedded MicroSD Slot
Type of rated voltage
Xp VXX NDC - 455-1 to 24 VAC plus or minus 10%
12 VDC plus or minus 10%
Ethernet power supply
VXX NDC - 455-2 xp 24 VAC plus or minus 10%
12 VDC plus or minus 10%
Ethernet power supply
Current consumption of 500 mA | 500 mA IVA (12 VDC) 500 mA | 650 mA IVA (24 VAC), 200 mA (PoE 48 VDC)
| 6 W power consumption 7.8 W IVA (12 VDC) | 9.7 7.4 W W IVA (24 VAC) 9.6 W (PoE 48 VDC)
sensors
Type a third of an inch CCD
Effective image (PAL) 752 x 582 pixels
Effective image 768 x 494 pixels (NTSC)
video
H. 264 video compression (ISO/IEC 14496-10);M - JPEG, JPEG
Data transfer rate of 9.6 Kbps to 6 Mbps
Vertical resolution level x (PAL/NTSC ips)
4 cif 704 x 576/480 25/30 (ips)
CIF 352 x 288/240 25/30 (ips)
Overall IP delay at least 120 milliseconds, up to 240 milliseconds
GOP structure I, IP, IBBP
Frame rate 1 to 50/60 (PAL/NTSC) h. 2641 to 25/30 (PAL/NTSC) M - JPEG
Video output
Simulation of composite signal service (NTSC or PAL)
The connector is 2.5 mm jack, 75 ohms
Horizontal resolution 540 TV lines
Video signal to noise ratio of 50 dB
Sensitivity (3200 K, scene reflectivity of 89%)
All video (IRE (100) effective images (50 IRE ()
NDC - 455 v03 (pro series)
The detailed information
