Product show

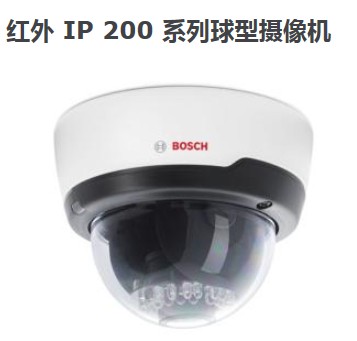

Bosch NDC-225-PI SD Fixed IP Hemisphere Camera, 4Mm Prime Lens
Product Numbers:NDC-225-PI
Price:0
Product introduction:Bosch NDC-225-PI SD Fixed IP Hemisphere Camera, 4Mm Prime Lens
Bosch NDC-225-PI SD Fixed IP Hemisphere Camera, 4Mm Prime Lens
Integrated network video monitoring system
In the light is extremely weak environment performance excellence
To capture images of moving objects
Transport both h. 264 video stream and a M - JPEG video streaming
Accord with standard of ONVIF
Used for the front-end video MicroSD/SDHC card slot
Easy to connect
The input voltage + 12 VDC power supply or Ethernet
Power consumption 6.6 watts.
Quarter inch CMOS sensor type
Sensor 640 x 480 pixels
Sensitivity lx (infrared) closed 1.0 0 lx (infrared open)
QVGA video resolution VGA
H. 264 video compression MP (Main Profile);H. 264 BP + (Baseline Profile Plus);M - JPEG
The biggest frame rate of 30 FPS
Distance 15 metres (50 ft)
Efficient LED 32 LED array, 940 nm
The lens type 4 mm lens, F1.5
Lens plate installation
Analog video output is only used to install the 2.5 mm jack
Short circuit or alarm input DC 5 v activation
Relay output maximum input rating 1 A 24 VDC/VAC
Built-in microphone audio input
Line input jack
Audio output circuit output jack
Two-way audio communication, full duplex
Audio compression g. 711, L16 (live and recording)
The memory card slot support up to 32 GB microSD/SDHC CARDS
Continuous recording video, video loop.Video alarm/event/schedule
Device configuration using a Web browser or PC monitoring software
Protocols HTTP, HTTPs and SSL, TCP, UDP, ICMP, RTSP, RTP, Telnet, IGMPv2 / v3, SNTP, FTP, SMTP, DHCP client, ARP, DNS, DDNS, NTP, SNMP, UPnP, 802.1 x, iSCSI
10/100 base-t Ethernet, automatic detection, half duplex/full duplex, RJ45
PoE accord with the standard IEEE 802.3 af
Diameter size: 135 mm (5.32 inch) height: 102 mm (4 inches)
Weighing about 566 grams (1.25 pounds)
Working temperature of the camera - 10 DHS C to + 45 DHS C (14 DHS F to + 113 DHS F)
Working temperature of general power equipment 0 ° C to + 40 ° C (+ 32 ° F to 104 ° F) +
Storage temperature - 20 DHS C to + 70 DHS C (4 DHS F to + 158 DHS F)
Humidity 10% to 10% relative humidity (no condensation)
