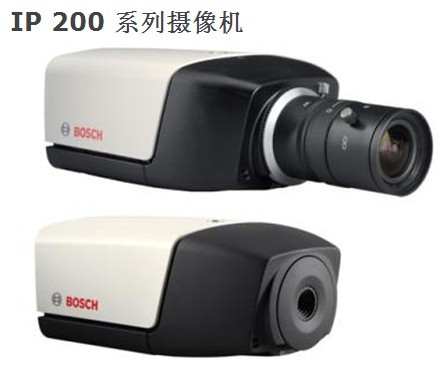

Bosch NBC-255-P SD Fixed IP Camera, 2.8-10mm Lens, Manual 2.8 to 10 mm Zoom Lens



Integrated network video monitoring system
To capture images of moving objects
Transport both h. 264 video stream and a M - JPEG video streaming
Accord with standard of ONVIF
Used for the front-end video SD/SDHC card slot
Easy to connect
The input voltage + 12 VDC power supply or Ethernet
The maximum power consumption 3.36 watts
Quarter inch CMOS sensor type
Sensor 640 x 480 pixels
The sensitivity of 1.0 lx
QVGA video resolution VGA
H. 264 video compression MP (Main Profile); H. 264 BP + (Baseline Profile Plus); M - JPEG
Frame rate 30/25 FPS: all the clarity
Lens type NBC - 255 - P: 2.8 to 10 mm, manual zoom allows to close the NBC - 225 - P: 4.9 mm lens, f
Lens NBC - 255 - P: NBC - 225 - P type CS base: plate installation
Alarm input + 9 to 30 VDC
Relay output 24 VAC/VDC, 1 A
Built-in microphone audio input
Line input jack
Audio output circuit output jack
Two-way audio communication, full duplex
Audio compression g. 711
Supports up to 32 GB memory card slot SD/SDHC CARDS
Continuous recording video, video loop. Video alarm/event/schedule
Device configuration using a Web browser or PC monitoring software
Protocols HTTP, HTTPs and SSL, TCP, UDP, ICMP, RTSP, RTP and RTCP, IGMPv2 / v3, SMTP, FTP, DHCP client, ARP, DNS, DDNS, NTP, SNMP, UPnP
10/100 base-t Ethernet, automatic detection, half duplex/full duplex, RJ45
PoE accord with the standard IEEE 802.3 af
Size (high) x width x thick, including lens NBC - 255 - P: 55 x 72 x 72 mm (2.17 x 2.17 x 2.83 inches), NBC - 225 - P: 55 x 72 x 72 mm (2.18 x 2.83 x 4.84 inches)
Weight (including lens) NBC - 255 - P: about 245 grams (0.54 pounds), NBC - 225 - P: about 177 grams (0.39 pounds)
Installation quarter inch socket, the top and bottom
Working temperature camera 0 DHS C to + 50 DHS C (+ 32 DHS F to + 122 DHS F)
Working temperature of general power equipment 0 ° C to + 40 ° C (+ 32 ° F to 104 ° F) +
Storage temperature - 20 DHS C to + 70 DHS C (4 DHS F to + 158 DHS F)
Humidity 10% to 10% relative humidity (no condensation)
