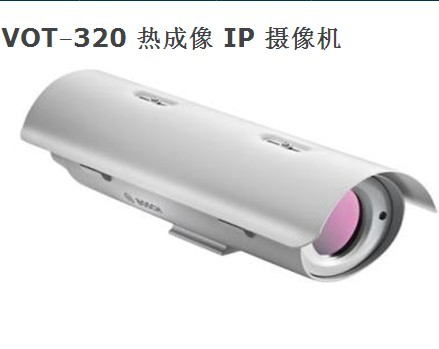

Bosch VOT-320-V009L Special IP Camera, 320 x240 Thermal Imaging, With 9mm (0.35 Inch Lens (8.33Hz)



• 320 x240 VOx thermal sensors
Solution of the real outdoor 24/7
IVA, integration optimization of thermal imaging
3.9 km (, 12795 ft) of detection range
• ONVIF consistent
Electrical indicators
Power equipment 24 VAC (SELV) plus or minus 10% 50/60 Hz
Maximum 1.4 A current consumption (24 VAC), all heaters are open
3.1 A (24 VAC), all heaters are open and PT full load operation
The camera module
Image sensor focal plane array (FPA), uncooled Vanadium Oxide (VOx) micro bolometer
Valid figure yuan 320 (vertical) x 240 (horizontal)
Spectral response 7.5 to 13.5 microns
Thermal sensitivity < 60 mK, F1.0
Scope of scenarios to 40 ° C to + 160 ° C (40 ° F to 320 ° F) + -
The lens
The lens type
Wide field 9 mm (0.35 inch), 13 mm (0.51 inch), 19 mm (0.75 inch)
A narrow field of 60 mm (2.36 inch)
Input/output
Video output 1 road,
The connector BNC
Resistance of 75 ohms
Signal analog composite: 0.7 to 1.2 Vpp, NTSC
Alarm 2 road input
The connector clamp circuit (not isolation type make contact)
Activate the largest 10 ohm resistance
Relay output 2 road
Connector clamp circuit
Signal 30 Vpp (SELV), 0.2 A
COM port clamp circuit, the RS ‑ 485/232/422
PT head clamp circuit, is used for direct connection LTC 9418/11 and 9418/21 LTC (or similar device; each channel maximum 0.85 A, 24 VAC)
video
H. 264 video compression MP (Main Profile), h. 264 BP +, M - JPEG, JPEG
Data transfer rate of 9.6 Kbps to 6 Mbps
Level of resolution (vertical) x 320 x 240
Frame rate
VOT xxH 30 ips - 320 - V *
VOT xxL 8.33 ips - 320 - V
Overall IP delay up to 240 milliseconds (h. 240 MP, GOP IP) up to 400 milliseconds (h. 264 BP +, GOP IP)
GOP structure IP, IBP, IBBP
Polarity incandescent, black hot
Video MOTION + mobile analysis, IVA
The local store
The memory card slot 1 SD card (attached)
Continuous recording video, video loop. Video alarm/event/schedule
Software control
Device configuration through a Web browser or Bosch Video Client
Software update flash ROM, remote programming
network
Protocol RTP, Telnet, UDP and TCP, IP, HTTP, HTTPS, FTP, DHCP, IGMP V2 / V3, ICMP, ARP, SMTP, SNTP, SNMP, RTSP, 802.1 x, iSCSI, DynDNS, UPnP
Encrypted TLS 1.0, SSL, AES (license)
10/100 base-t Ethernet, automatic detection, half duplex/full duplex, RJ45
Mechanical indicators
Size (height x width x length) and JianShi figure
Weight 3.5 kg (7.7 lb)
1 at the back of the connector
Cable diameter of 4.0 to 8.0 mm (0.16 to 0.31 inch) or 2.0 to 6.0 mm (0.08 to 0.24 inch)
The back of the joint of two
Cable diameter of 6.0 to 12.0 mm (0.24 to 0.47 inch)
3 mm (0.12 inch) germanium glass window
Lock and remove the screw
Tamper protection built-in tamper switch
Shell aluminum frame, neoprene gasket
Color gray
Install 2 of threaded hole
Thread 1/4-20
Internal distribution of 50.8 mm (2.0 inch) center
Outside on the 73.7 mm (2.9 inch) center distribution
At the bottom of the tripod (isolated) 20 UNC 1/4 inch
The environment
Working temperature to 50 ° C to + 55 ° C (58 ° F to 131 ° F) + -
The storage temperature and 55 ° C to + 70 ° C (67 ° F to 158 ° F) +
Not afraid of you joke, friends see my "treas
Store humidity up to 98% relative humidity
Enclosure protection IP66, NEMA Type 4
