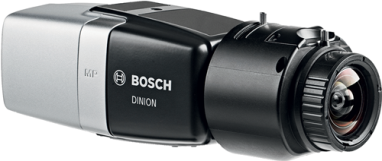

BOSCH NBN-80052-BA DINION IP starlight 8000 Network Camera 5MP IVA
Product Numbers:BOSCH NBN-80052-BA
Price:0
Product introduction:Remarkable low-light performance (0.0121 lx) 5MP (3K) high detail at fast speeds (30 fps) Built-in Intelligent Video Analytics to trigger relevant alerts and quickly retrieve data Low network strain and storage costs Outstandi
BOSCH NBN-80052-BA DINION IP starlight 8000 Network Camera 5MP IVA
| Power | |
| Power Supply | 12 VDC; Power-over-Ethernet 48 VDC nominal |
| Current Consumption | 750 mA (12 VDC); 200 mA (PoE 48 VDC) |
| Power Consumption | 9 W |
| PoE | IEEE 802.3af (802.3at Type 1) Class 3 |
| Sensor | |
| Type | 1/1.8” CMOS |
| Total sensor pixels | 6.1 MP |
| Video performance ‑ Dynamic range | |
| 5.5MP (4:3) mode | 97 dB WDR (97+16 dB with IAE) |
| 5MP (16:9) mode | 97 dB WDR (97+16 dB with IAE) |
| 1080p mode | 103 dB WDR (103+16 dB with IAE) |
| Video performance – Sensitivity(3200K, 89% reflectivity, 30% IRE, F1.2) | |
| Color 5MP mode | 0.0121 lx |
| Color 1080p mode | 0.00825 lx |
| Mono 5MP mode | 0.004 lx |
| Mono 1080p mode | 0.00275 lx |
| Video streaming | |
| Video compression | H.264 (MP); M-JPEG |
| Streaming | Multiple configurable streams in H.264 and M-JPEG, configurable frame rate and bandwidth. Regions of Interest (ROI) |
| Overall IP Delay | Min. 120 ms, Max. 340 ms |
| GOP structure | IP, IBP, IBBP |
| Encoding interval | 1 to 30 [25] fps |
| Encoder regions | Up to 8 areas with encoder quality settings per area |
| Video resolution | |
| 5MP (16:9) | 2992 X 1680 |
| 5.5MP (4:3) | 2704 X 2032 |
| 1080p HD | 1920 X 1080 |
| 720p HD | 1280 x 720 |
| Upright 9:16 (cropped) | 400 x 720 |
| D1 4:3 (cropped) | 704 x 480 |
| 480p SD | Encoding: 704 x 480; Displayed: 854 x 480 |
| 432p SD | 768 x 432 |
| 288p SD | 512 x 288 |
| 240p SD | Encoding: 352 x 240; Displayed: 432 x 240 |
| 144p SD | 256 x 144 |
| Camera installation | |
| Base frame rate | 25/30 fps (PAL/NTSC for analog output) |
| Camera LED | Enable/disable |
| Menu button | Enable/disable |
| Mirror image | On / Off |
| Flip image | On / Off |
| Analog output | Off, 4:3, 16:9 pillar box, 16:9 crop |
| Positioning | Coordinates |
| Lens wizard | Autofocus |
| Video functions - color | |
| Adjustable picture settings | Contrast, Saturation, Brightness |
| White Balance | 2500 to 10000K, 4 automatic modes (Basic, Standard, Sodium vapor, Dominant color), Manual mode and Hold mode |
| Video functions - ALC | |
| ALC level | Adjustable |
| Saturation | Adjustable from peak to average |
| Shutter | Automatic Electronic Shutter (AES); Fixed shutter (1/25[30] to 1/15000) selectable; Default shutter |
| Day/Night | Auto (adjustable switch points), Color, Monochrome |
| Video functions - enhance | |
| Sharpness | Sharpness enhancement level selectable |
| Backlight compensation | On / off / Intelligent Auto Exposure (IAE) |
| Contrast enhancement | On/off |
| Noise reduction | Intelligent Dynamic Noise Reduction with separate temporal and spatial adjustments |
| Intelligent defog | Intelligent Defog automatically adjusts parameters for best picture in foggy or misty scenes (switchable) |
|
Video analysis |
| Configurations | Silent VCA / Profile1/2 / Scheduled / Event triggered |
| Analysis type | IVA / IVA flow / MOTION+ |
| Tamper detection | Maskable |
| Additional functions | |
| Scene modes | Nine default modes, Scheduler |
| Privacy Masking | Eight independent areas, fully programmable |
| Video authentication | Off / Watermark / MD5 / SHA-1 / SHA-256 |
| Display stamping | Name; Logo; Time; Alarm message |
| Pixel counter | Selectable area |
| Audio streaming | |
| Standard | G.711, 8 kHz sampling rate L16, 16 kHz sampling rate AAC-LC, 48 kbps at 16 kHz sampling rate AAC-LC, 80 kbps at 16 kHz sampling rate |
| Signal-to-Noise Ratio | >50 dB |
| Audio Streaming | Full-duplex / half duplex |
| Input/output | |
| Analog video out | SMB connector, CVBS (PAL/NTSC), 1 Vpp, 75 Ohm |
| Audio line in | 1 Vrms max, 18 kOhm typical, |
| Audio line out | 0.85 Vrms at 1.5 kOhm typical, |
| Audio connectors | 3.5 mm mono jack |
| Alarm input | 2 inputs |
| Alarm input activation | +5 VDC nominal; +40 VDC max. (DC-coupled with 50 kOhm pull-up resistor to +3.3 VDC) (< 0.5 V is low; > 1.4 V is high) |
| Alarm output | 1 output |
| Alarm output voltage | 30 VAC or +40 VDC max. Maximum 0.5 A continuous, 10VA (resistive load only) |
| Ethernet | RJ45 |
| Data port | RS‑232/422/485 |
| Local storage | |
| Internal RAM | 10 s pre-alarm recording |
| Memory card slot | Supports up to 32 GB microSDHC / 2 TB microSDXC card. (An SD card of Class 6 or higher is recommended for HD recording) |
| Recording | Continuous recording, ring recording. alarm/events/schedule recording |
| Network | |
| Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, MIB-II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, digest authentication |
| Encryption | TLS 1.0, SSL, DES, 3DES |
| Ethernet | 10/100 Base-T, auto-sensing, half/full duplex |
| Connectivity | ONVIF Profile S , Auto-MDIX |
| Software | |
| Unit Configuration | Via web browser or Configuration Manager |
| Firmware update | Remotely programmable |
| Software viewer | Web browser, Bosch Video Client, or third party software |
| Optical | |
| Lens mount | CS mount (C-mount with adapter ring) |
| Lens connector | Standard 4-pin DC-iris connector |
| Focus control | Motorized back-focus adjustment |
| Iris control | Automatic iris control |
| Mechanical | |
| Dimensions (W x H x L) | 78 x 66 x140 mm (3.07 x 2.6 x 5.52 inch) without lens |
| Weight | 855 g (1.88 lb) without lens |
| Encryption | TLS 1.0, SSL, DES, 3DES |
| Ethernet | 10/100 Base-T, auto-sensing, half/full duplex |
| Connectivity | ONVIF Profile S , Auto-MDIX |
| Software | |
| Unit Configuration | Via web browser or Configuration Manager |
| Firmware update | Remotely programmable |
| Software viewer | Web browser, Bosch Video Client, or third party software |
| Optical | |
| Lens mount | CS mount (C-mount with adapter ring) |
| Lens connector | Standard 4-pin DC-iris connector |
| Focus control | Motorized back-focus adjustment |
| Iris control | Automatic iris control |
| Mechanical | |
| Dimensions (W x H x L) | 78 x 66 x140 mm (3.07 x 2.6 x 5.52 inch) without lens |
| Weight | 855 g (1.88 lb) without lens |
