Asx AXIS q1615-e network camera
Outdoor integration, providing judicial identification details and high speed
Stop selling products. Support dates to 2021-11-17
After this date, see the support documentation.
You can get support as long as the product is under warranty.
Replacement: AXIS q1615-e Mk II
Outdoor integration, with polar temperature control function
- 40 ° to 60 ° C - C (40 ° F to 122 ° F) -
1080 p HDTV, 60 FPS
WDR - wide dynamic shadow hunting techniques and light seekers
Amex Zipstream technology
Electronic image stabilization and vibration detection
The AXIS Q1615 - E
Outdoor integrated video monitoring
AXIS q1615-e with IP66 and NEMA 4X USES a solid aluminum casing and sunshade, reducing installation time and installation costs. The camcorder with dust, rain, snow and shading function, using high power Ethernet (30 W) of the power supply, the working temperature range for 40 ° to 60 ° C - C (- 40 ° F to 140 ° F).
The camcorder is not only can be in to 40 ° C (to 40 ° F) under the temperature of the work, in the case of power failure, can also at the temperature to electricity.
This function is known as the anshun polar temperature control. In order to provide heating support, several heaters are set up to directly contact the camera and window. AXIS q1615-e adopts double shell technology to store heat in cold environment. In a hot environment, fans are used for ventilation and heat is quickly transferred to the external aluminum base for efficient cooling.

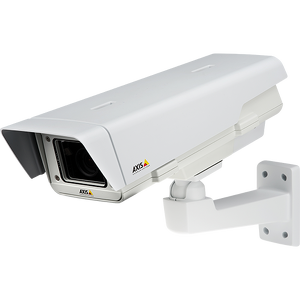

The camera is attached with a wall hanger
Hand squeezing lemon
More video, less space
AXIS Q1615 carried a Ann - E - Zipstream technology, this technology is basically a h. 264 more efficient implementation, in many common continuous monitoring of the application, it can reduce bandwidth and storage needs at least an average of 50%. Zipstream can analyze and optimize the video stream in real time, saving bandwidth and storage while maintaining image quality.
Stable video is obtained during vibration
The electronic image stabilization function greatly improves the quality of video when the camera is easy to shake. If the electronic image is not stable, it may be difficult to watch video. As a result, the impact of vibration is greatly reduced, resulting in a more fluid and stable video.
Innovative installation
In addition to the easy-to-install features common in the AXIS Q16 series, AXIS q1615-e also includes some innovative features to help installers install cameras. The leveling aid guides the camera to the right height, which means the camera can be installed anywhere and always provide the perfect image.
The automatic rotation function turns the image over to the correct direction, which can also be performed in corridor mode. The camera also has a vibration detection function that alerts people when damage is done. AXIS q1615-e supports focus assist, remote afterfocus adjustment and pixel statistics.
In addition, the outdoor integrated camera also supports the PoE, so it can be installed with a single cable. Additional sunscreens and wall hangers can also simplify installation. To increase flexibility,
Three cable washer holes are provided for Ethernet cables, power cables and external equipment to be connected via the I/O port of the camera. In addition, the cable also has wanton damage protection characteristics, and the front window can be replaced.
The outdoor integrated AXIS q1615-e, like the AXIS Q1615 network camera, can provide high-quality images.
Video footage captured by AXIS q1615-e network camera
Marina Itajai
Brazil's largest marina USES video surveillance cameras not only for security monitoring but for 24/7 of operations
