Asx AXIS q1614-e network camera
Outdoor special, with 50/60 FPS frame rate, achieve excellent HDTV 720p video performance
Stop selling products. Support dates to 2021-11-17
After this date, see the support documentation.
You can get support as long as the product is under warranty.
Replacement: AXIS q1615-e Mk II
Outdoor special, with polar temperature control function
To 40 ° C to + 50 ° C (- 40 ° F to + 122 ° F) :
Dynamic capture and light finder technology
Day to night conversion function
Innovative installation
Shock detection
Outdoor video monitoring special

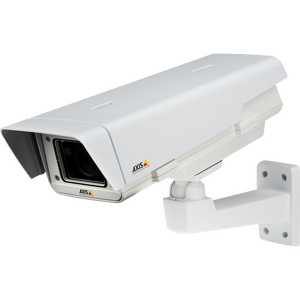

The camera is attached with a wall hanger
AXIS q1614-e with IP66 and NEMA 4X USES a solid aluminum casing and sunshade, which reduces installation time and installation cost. The dust, rain, snow, shading, high power Ethernet power supply (30 W), working temperature range for - 40 ° C to 50 ° C (- 40 ° F to 122 ° F).
The camcorder is not only can be in to 40 ° C (to 40 ° F) under the temperature of the work, in the case of power failure, can also at the temperature to electricity. This function is known as the anshun polar temperature control. In order to provide heating support, several heaters are set up to directly contact the camera and window.
AXIS q1614-e adopts double shell technology to store heat in cold environment. In a hot environment, fans are used for ventilation and heat is quickly transferred to the external aluminum base for efficient cooling.
Innovative installation
In addition to the easy-to-install features common in the AXIS Q16 series, AXIS q1614-e also includes some innovative features to help installers install cameras. The leveling aid guides the camera to the right height, which means the camera can be installed anywhere and always provide the perfect image.
The automatic rotation function turns the image over to the correct direction, which can also be performed in corridor mode. The camera also has an impact detection capability that alerts people when damage is done. AXIS q1614-e supports focus assist, remote afterfocus adjustment and pixel statistics.
The outdoor camera also supports the PoE, so it can be installed with a single cable. Additional sunscreens and wall hangers can also simplify installation. To increase flexibility,
Three cable washer holes are provided for Ethernet cables, power cables and external equipment to be connected via the I/O port of the camera. In addition, the cable also has wanton damage protection characteristics, and the front window can be replaced.
HDTV 720p, 50/60 FPS
AXIS q1614-e provides extremely detailed video for high speed moving scenarios. The camera has a frame rate of 50 or 60 frames per second and video resolution of HDTV 720p, making it easy to spot events.
Outdoor AXIS q1614-e has the same function as AXIS Q1614 network camera in guaranteeing high quality images.
Video footage captured by AXIS q1614-e network camera
Lille Airport
A broad system of IP cameras deployed, and improved in the video surveillance system's maintenance and convenience
