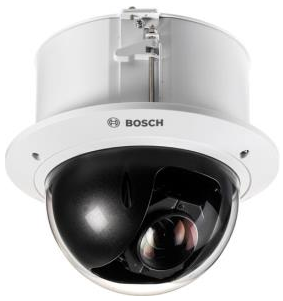

Bosch ndp-5502-z30c PTZ spherical camera 2MP 30x, transparent, indoor ceiling embedded installation


The 30x optical zoom lens can clearly identify people (up to 183m / 600 feet) without losing any recognition details
Excellent performance under low illumination conditions
Built in essential video analytics for triggering related alerts and quickly retrieving data
Flexible installation options (embedded ceiling installation or lifting) are provided, and the installation is extremely simple
Imager 1 / 2.8 inch progressive scan CMOS
Effective pixels 1945 x 1097 (2.13 MP)
Lens 30x zoom 4.5mm - 135mm (f1.6 - f4.4)
Optical zoom field of view (FOV) 2.4 ° - 60.9 °
Auto focus, can be controlled manually
The aperture is automatic and can be controlled manually
Digital zoom 16x
Video performance sensitivity
(3100K, reflectivity 89%, 1 / 30, f1.6, 30 IRE)
Color 0.05 LX
Black and white 0.01 LX
High dynamic range 94 dB (measured according to IEC 62676 Part 5)
Electronic shutter speed (AES) 1 / 30 sec to 1 / 15000 sec (12 step)
Signal to noise ratio (SNR) > 55 dB (AGC off)
Intelligent dynamic noise reduction
Backlight compensation (BLC) on / off
Intelligent defog automatically adjusts parameters to get the best picture in foggy or fuzzy scenes (auto / off)
White balance standard automatic, sodium lamp automatic, basic automatic, manual, holding, main color automatic
Day / night mechanical switchable infrared filter (auto / on / off) black and white
Video content analysis
Analysis type essential video analytics
VCA profile - 16
Alarm rule (can be combined) any object in the surveillance area enters the surveillance area through the warning line, leaves the surveillance area and wanders along the route. The idle object has been removed object counter occupancy detection condition change similarity search anti demolition
Object filter duration size aspect ratio V / h speed direction color object category (standing person, bicycle, car, truck)
Automatic self calibration when setting height
Normal horizontal / vertical rotation mode: 0.1 ° / S - 120 ° / s Turbine: horizontal rotation: 0.1 ° / S - 300 ° / S; vertical rotation: 0.1 ° / S - 200 ° / s
Preset position speed horizontal rotation: 300 ° / s vertical rotation: 200 ° / S
The horizontal rotation range is 360 ° continuously
Vertical rotation angle - 90 ° to 0 '

Alarm input 2

Alarm output, 1 relay output, 32 VDC, 150 MA (maximum)
Audio 1 channel mono line input, 1 channel mono line output
Signal line input 94 K Ω (typical), 1 VRMs (maximum)
Signal line output 1 K Ω (typical), 1 VRMs (maximum)
Waterproof and dustproof grade / standard IP66
Meet the IK standard ik10
Operating temperature - 40 ° C to + 60 ° C (- 40 ° f to + 140 ° f)
Humidity 0% to 100% RH, condensation
Storage temperature - 40 ° C to + 60 ° C (- 40 ° f to + 140 ° f)
Waterproof and dustproof grade / standard ip51
Operating temperature - 10 ° C to + 60 ° C (+ 14 ° f to + 140 ° f)
Humidity max 90% RH, no condensation
Storage temperature - 40 ° C to + 60 ° C (- 40 ° f to + 140 ° f)
Dimensions (d x H) 207 mm x 303.6 mm (8.15 in X 11.95 in)
Weight 3.25 kg (7.17 lb)
Structural material shield: Aluminum sunshade: outdoor grade plastic ball cover: polycarbonate
Standard color white (RAL 9003)
Dimensions (d x H) 198 mm x 176.6 mm (7.8 in X 6.95 in)
Weight 2.1 kg (4.63 lb)
Structural material shield: SPCC decorative ring: PC / ABS ball cover: polycarbonate
Standard color white (RAL 9003)
