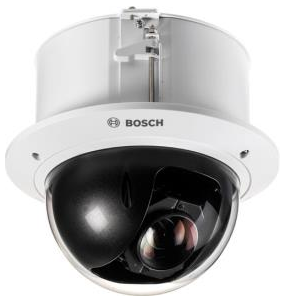

Bosch ndp-4502-z12c PTZ spherical camera 2MP 12x, transparent, indoor ceiling
Board embedded installation




The perfect combination of U shape and technology is suitable for the ball type defense which needs to be compact and beautiful
Indoor installation of high quality image in hood
U integrated 12x optical zoom lens for clear identification of personnel (up to 90
Meters / 295 feet) without losing any recognition details (250 pixels)/
M).
U built in essential for triggering related alerts and quickly retrieving data

Video Analytics

U uses flexible mounting options (flush mounted or surface mounted
Installation is very simple
Autodome IP 4000i is a compact indoor PTZ spherical camera
Machine, with 1080p60 HD sensor and 12 times optical zoom lens, makes
The operator can monitor large scenes without missing any small details. The camera
The machine has beautiful design and flexible installation options, which can monitor the original hidden
A lobby, reception area or waiting area that requires multiple cameras for effective monitoring.
function
Excellent imaging performance
The camera adopts Bosch's digital imaging technology and has been carefully adjusted,
Can maintain accurate color restoration, provide high-resolution HD video, and can
To zoom in on small details of objects flexibly.
Preset user mode
The camera has three pre adjusted scene patterns to match those in the indoor scene
Various lighting conditions. Users can complete the configuration without multiple imaging settings.
Standard: for indoor fluorescent lighting.
Sodium lamp lighting: it is used for shooting and viewing in daylight or at night under sodium vapor lamp illumination
Frequency scene.
· vivid: used to enhance contrast, clarity and saturation
H. 265 high efficiency video coding
The camera adopts H.264 and h.265 with the highest efficiency and excellent performance/
Hevc coding platform is designed. The camera can operate with ultra-low network load
Transmit high quality, high definition video. H. The coding efficiency of 265 is improved by one
It is the preferred new compression standard for IP video monitoring system.
Intelligent data flow
Intelligent coding function combined with intelligent dynamic noise
Reduction technology and analysis reduce the bandwidth consumption to a very low level.
Only the relevant information in the scene (such as moving) or the object found through analysis is needed
Code.
The camera can carry out four bit stream transmission, so that the camera can provide independent, can
Configured video stream for live viewing, video recording or remote monitoring through limited bandwidth

Control.

Video and storage management

It can be controlled by Bosch video recording manager application
Video recording management, can also be directly used by the camera local storage and iSCSI target
No video recording software is required.
Memory cards (SD, SDHC or SDXC) with a maximum capacity of 2 TB can be used
"Front end" video recording on or for automatic network
Reproduction (ANR) technology to improve the reliability of the overall recording.
The pre alarm recording in RAM can reduce the bandwidth consumption on the network and prolong the memory
The effective service life of the card.
Front end essential video analytics
Essential video analytics applications can be small to medium enterprises, large
Retail stores, commercial buildings and warehouses provide reliable video analysis.
It also provides multiple cordon crossing detection, stay detection, idle / removed object detection
High level tasks such as measurement, population density estimation, occupancy and population statistics are carried out to facilitate
Carry out live alarm and forensic search. Can be based on size, speed, direction, vertical
Horizontal ratio and color define the object filter.
In the simplified calibration mode, you only need to shoot for each camera, regardless of the preset position
Therefore, the installation time can be significantly shortened.

After the camera is calibrated, the analysis engine can automatically divide the objects into standing people and cars

There are several categories of cars, bicycles or trucks.

data security

Special measures must be taken to ensure the highest level of device access and data transmission

Security. During the initial setting, the camera can only be accessed through the secure channel

And the password is mandatory.

HTTP or other security protocols can be used for web browser and viewing client access

It is suggested to protect. These security protocols support the advanced TLS 1.2 protocol, as well as

Updated cipher suite, including AES encryption with 256 bit key. Photograph

No software can be installed in the camera, and only verified firmware can be uploaded. have

Three level password protection with security recommendations allows user-defined device access. network

And device access can use 802.1x network identity supporting EAP / TLS protocol

Verify to protect. Embedded login firewall, onboard trusted platform module

(TPM) and public key infrastructure (PKI) support ensures that

Excellent protection.




Technical index

Imager 1 / 2.8 inch progressive scan CMOS

Effective pixels 1945 x 1097 (2.13 MP)

Lens focal length 12 times zoom

5.3 mm to 64 mm (f1.6 to f2.8)

Field of view (FOV) 4.9 ° to 58.5 °

Auto focus, can be controlled manually

Aperture Auto

Digital zoom 16x

Video performance sensitivity

(3100K, reflectivity 89%, 1 / 30, f1.6, 30 IRE)

Color 0.05 LX

Black and white 0.01 LX

High dynamic range 94 dB (measured according to IEC 62676 Part 5)

shutter speed

(AES)

1 / 30 seconds to 1 / 15000 seconds (12 steps)

Signal to noise ratio (SNR) > 55 dB (AGC off)

Intelligent dynamic noise reduction

Backlight compensation (BLC) on / off



Electrical parameters

Input voltage 24 VAC and Poe+

Power consumption 24 VAC: 12 W

PoE+：12 W

software control

Device discovery IP helper
Camera
