Ansys Axis F44 host
Four in one video monitoring
Stop selling products. Support date to 2022-06-02
After this date, see the support documentation.
You can get support as long as the product is under warranty.
Replace: AXIS F44 Dual Audio Input
Support four sensor components
Four separate 1080p or HDTV 720p video streams are simultaneously processed
Video stream of divided picture
Strong design and easy installation
Two-way audio
Two full-size SD card slots

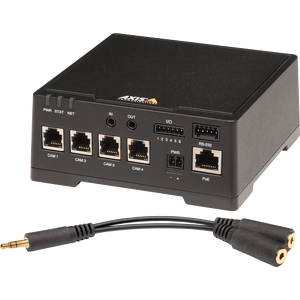

The AXIS F44 Main unit
Flexible installation
The AXIS F44 host supports up to four AXIS F sensor units capable of monitoring four adjacent areas. The main part can be installed 12 meters (39 feet) from the sensing part.
The masking area. Sensors can be installed in small areas of indoor and outdoor space. The solution is ideal for stores, atms, emergency vehicles, buses and trams.
Covering four regions, it is economical and efficient
AXIS F44 provides a simple and cost-effective multi-screen monitoring solution that streams images from four different regions simultaneously over an Ethernet port. The total installation cost of AXIS F44, four sensor components, and other system components may be lower than that of a system that includes four comparable standard network cameras.
For example, network switches may be cheaper because they reduce the number of ports required. If the video management software (VMS) sees AXIS F44 as requiring a license rather than four, the VMS license fee can also be reduced. Overall installation and placement of these components may also be easier and more flexible than traditional camera solutions. In addition, the versatile AXIS F44 supports two full-size SD card slots for storing recorded content locally, thus bringing a high-performance stand-alone solution.
Two capture modes
AXIS F44 supports two different shooting modes. The 1080p capture mode can simultaneously process four independent 1080p video streams at a rate of 12.5/15 frames per second (50/60 Hz) and provide all-round monitoring through the 1080p image sensor of the AXIS F sensor unit.
720 p capture mode can cut the picture in the form of under full frame rate for the four 720 p HDTV video stream processing (horizontal Angle is smaller than 1080 p resolution mode about 35% to 35%, depending on the sensor unit).
AXIS F44 also supports a single video stream in the form of a four-segment screen, which consists of four separate images from a connected sensor unit. AXIS F44, together with the AXIS F sensor unit, can provide color video under the low light condition of 0.3 lux.
A four-segment screen provided by a bus. Watch video from the bus system.
Forensic Capture technology
AXIS F44's 720p Capture mode provides "Forensic Capture" on all four channels. Forensic Capture
The function is activated when connected to the AXIS F sensor unit that supports this function. <> USES "Forensic Capture" to make highly detailed images of extremely bright and dark areas of the scene. This technology is very suitable for the scene in which the object appears dark due to the bright background, such as the entrance or the front of ATM. Or a nighttime solution, in which cameras must simultaneously handle low-light environments and bright lights from vehicles, street lights, signboards and stores.
AXIS F44 perfectly matches AXIS F sensor unit and provides color video under low illumination conditions of 0.3 lux.
Zipstream
Reducing the bit rate with Axis Zipstream
AXIS F44 supports amex Zipstream technology to realize more efficient implementation of h. 264 video encoder. It is suitable for a variety of monitoring scenarios and can reduce bandwidth and storage requirements by more than 50% on average. In addition, it ensures that important details are retained when removing unnecessary data.
Amex Zipstream technology
Strong design and easy installation
AXIS F44 to withstand harsh conditions, such as vibration and impact, and the temperature change, therefore very suitable for emergency vehicles (such as police cars, fire engines and ambulance), buses, trams, trucks (such as for car and other valuables in the truck).
Host can easily installed in a cabinet or small cabinets, because all the connector installed on the side of the host, made all the cables are the same direction, do not take up extra space. The bottom of the main component can be attached directly to the DIN track.
versatile
In addition to two built-in SD card slots, AXIS F44 also supports two-way audio and four configurable input/output ports connected to external devices to enhance alarm management. RS232 port,
Enable external data to be integrated with video. Video provides a variety of intelligent video functions, including video mobile detection, active damage alarm, and applications that can be downloaded from the application platform of the amex camera. The main components can be powered by Ethernet or dc power.
AXIS F sensor unit
F1004 holder,
AXIS F1004 sensor unit
Ultra-small size, ultra-low price, hidden monitoring.
Learn more
AXIS F1004 Bullet Sensor Unit
AXIS F1004 Bullet sensor unit
Compact bullet design, easy installation.
Learn more
AXIS F1004 Pinhole Sensor Unit
AXIS F1004 pinhole sensor unit
Pinhole lenses are used for extremely covert monitoring
Learn more
The AXIS F1005 - E Sensor Unit
AXIS f1005-e sensor unit
Solid design for indoor, outdoor and mobile monitoring applications.
Learn more
The AXIS F1015 in hand
AXIS F1015 sensor unit
Zoom lens, HDTV resolution, suitable for very hidden indoor monitoring applications.
Learn more
The AXIS F1025 Sensor Unit
AXIS F1025 sensor unit
The resolution of the needle hole lens and HDTV is suitable for the ultra-hidden indoor monitoring application.
Learn more
The AXIS F1035 - E Sensor Unit
AXIS f1035-e sensor unit
Fish-eye lens, providing hidden wide range of HDTV indoor or outdoor monitoring.
Learn more
The AXIS F4005 Sensor Unit
AXIS F4005 hemispheric sensor unit
Embedded hemispheric camera for indoor hidden monitoring.
Learn more
AXIS f4005-e Dome Sensor Unit
AXIS f4005-e hemispherical sensor unit
Embedded hemispheric camera, suitable for indoor and outdoor and vehicle hidden monitoring.
